Zipper Frac: What It Is & How It Works

What is a zipper frac?

A zipper frac (also known as a zipper fracture, zipper fracking, or zipper ops) is a simple idea that makes a big difference on a multiwell pad. As pads went from single wells to 2, 4, 6 or more laterals, operators realized the old “one-at-a-time” workflow left pumps inactive for long periods. Zipper operations turned that idle time into pumping time.

Instead of finishing every stage on one well before you start the next, you bounce back and forth after each stage. While the pumps are hammering away on Well A, the wireline crew is setting up the next stage on Well B. When A is done, you start pumping on B, and wireline heads back to A. Rinse and repeat.

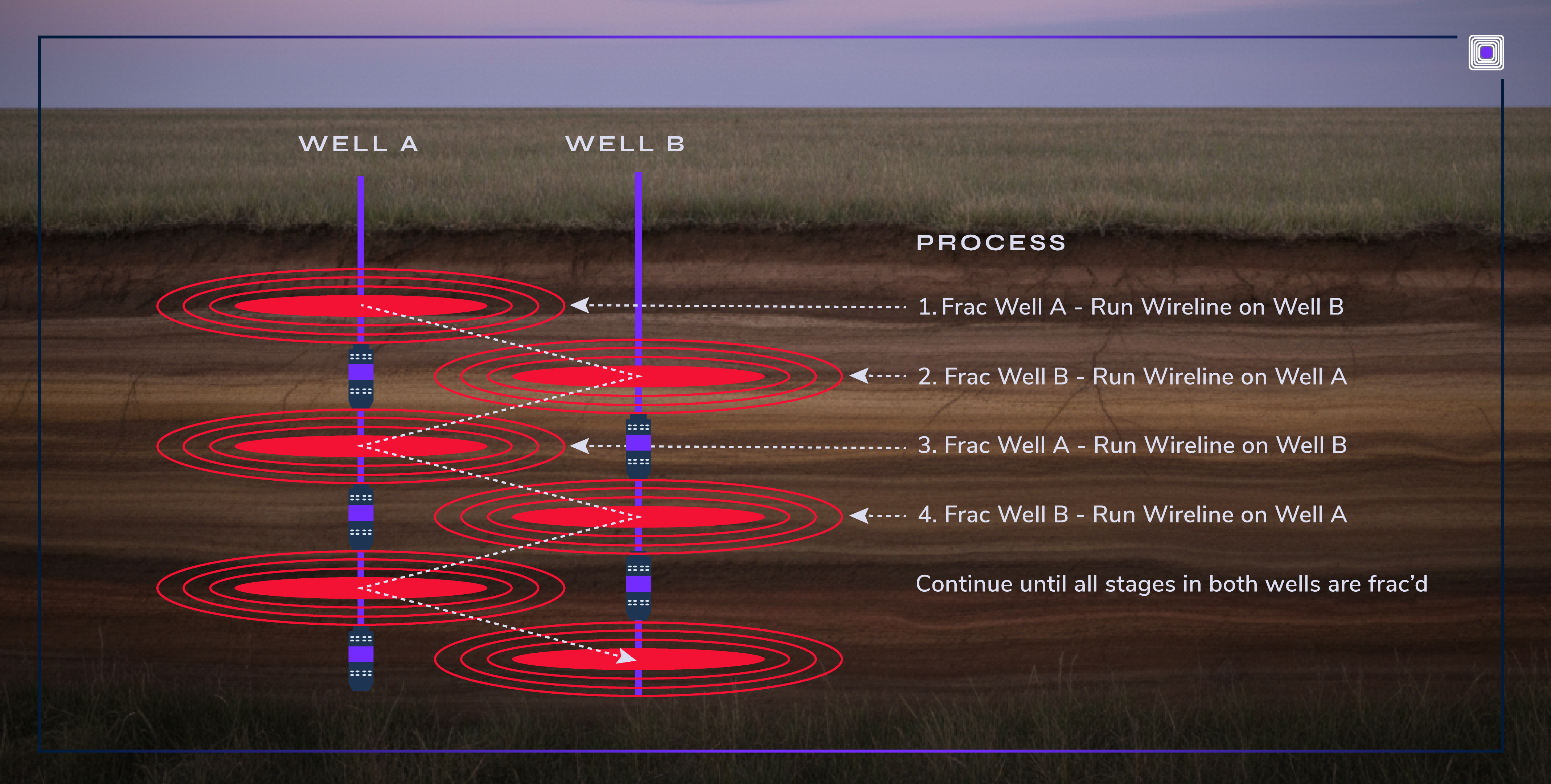

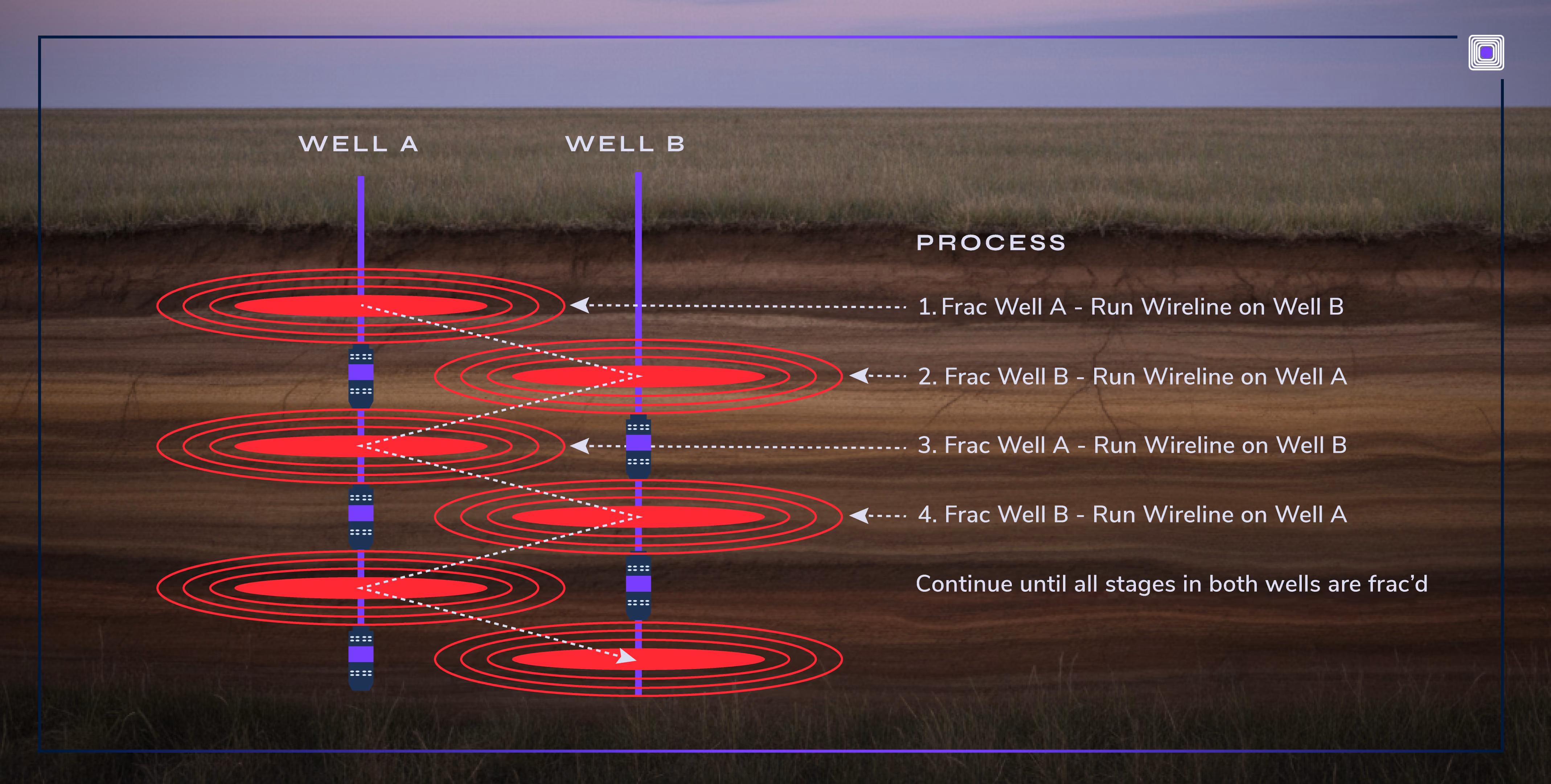

Here’s what that looks like (and notice how it looks kind of like your regular everyday zipper):

READ MORE: Emerging trends in completions

How does a zipper frac work?

Imagine you have two wells, Well A and Well B, sitting side-by-side on the same pad. Here’s the basic pattern of a zipper frac:

1. Well A gets ready: The wireline crew goes into Well A and sets up the first stage to be frac’d. They perforate the casing, making holes for the frac fluid to get out into the rock.
2. Well A gets pumped: The pumps kick on and start pushing fluid and sand into Well A.
3. Well B gets ready: While Well A is still being pumped, the wireline crew doesn't just stand around. They move over to Well B and get its first stage ready, perforating it just like they did for Well A.
4. Well B gets pumped: As soon as Well A finishes its first stage, the frac crew switches over to pump the first stage of Well B.
5. Well A gets ready again: While Well B is now getting pumped, the wireline crew moves back to Well A to get its second stage ready.

This back-and-forth, tag-team approach keeps the big frac pumps working almost non-stop. Instead of waiting for the wireline crew to finish their run or frac to finish their stage on a well, everything is happening in a rotating sequence. If you have three or more wells, you can create a loop (Well A → Well B → Well C → Well A) that keeps everyone busy and productive. It’s all about smart timing and making sure there’s always a well ready for the pumps.

Where does a zipper frac make sense?

Zippering works best where you can keep a steady rhythm, with no long waits, no scrambling for sand or water, and no big surprises in the casing. Here’s what to look for when you’re trying to decide whether or not to zipper frac:

• Pads with multiple wells and similar targets. Ideally you’d have two or more wells on the same pad with similar stage designs. This helps keep your timing tight. If you have mixed targets or different benches, zippering is still doable but will have slower handoffs.
• Clean logistics and supply chain readiness. Zippering cuts idle time, so your operation needs to be prepared for constant demand. Your pad should have good access roads, ample water storage, and safe truck flow with all your materials on hand.
• Predictable geology. Brittle, uniform rock with a consistent stress regime is your friend. It lets you repeat stage designs across wells without constant re-engineering. In areas with strong natural fractures, monitor closely and be ready to tweak the zipper sequence.
• Uniform well spacing. This helps keep frac behavior and pressures in a manageable range. Tight spacing or parent–child situations raise the chance of frac hits. Plan for bottom hole pressure monitoring, potential shut-ins, and careful stage order.
• Reliable power and fleet maintenance. If you have access to grid power or an e-fleet, you can cut noise and emissions while supporting long pump hours. Continuous pumping also means your fleet needs a strong maintenance plan to stay online nonstop.
• Crew coordination and comms. Zipper fracs need clean handoffs at every step of the way. When frac finishes on one well, wireline has the next stage ready on the other. That takes clear radio etiquette, a single point of contact, and a schedule everyone follows.

If most of those boxes are checked, a zipper frac is likely to save time and cut dollars per foot. You can still zipper even if only a few conditions are in place, but pace yourself and expect more stop-and-go action.

READ MORE: What copy-paste engineering means for your completion

What are the pros and cons of zipper frac’ing?

Zipper fracs can boost the efficiency of any operation, but they also come with their own set of challenges you need to be ready for. Here’s a quick look at the pros and cons of zipper frac’ing:

Pros of zipper frac'ing

• Higher pumping utilization with less idle time
• More stages completed per day
• Potential for lower cost per lateral foot
• Faster well completion means faster revenue
• Improved crew rhythm and consistency with fewer errors

Cons of zipper frac'ing

• Higher risk of frac hits
• Risk of parent–child well interference
• Complex pressure management across multiple wells
• Higher demand for sand, water, and chemicals
• Increased HSE exposure due to continuous, high-intensity operations

By understanding these pros and cons and having solid mitigation strategies in place, you can make zipper fracs a highly effective part of your completion program. Proven strategies include:

• Monitoring pressure in all wells on the pad, especially the ones not being pumped
• Planning the order of stage and well sequences to minimize interference
• Diverting frac fluid away from unwanted paths or temporarily shutting in an offset well in case of a frac hit
• Designing the frac job itself to control how the fractures grow and where they go
• Having backup plans for logistics, equipment, and unexpected well behavior

READ MORE: Navigating completions challenges in the Permian basin

Zipper frac best practices

Zipper frac’ing pays off when you’re well prepared and everyone knows the plan. Here are the field-tested habits that keep the frac running smoothly, giving you fewer headaches and more pumping hours:

• Confirm stage designs, pump rates, fluids, and other details before starting
• Set clear roles and one point of contact for coordinating logistics
• Maintain clear lines of communication, with no cross-talk or unclear commands on the comms
• Have daily briefs and debriefs about timing, hazards, and changes
• Monitor well pressure at every stage
• Keep wireline one stage ahead at all times to avoid delays
• Standardize transitions using checklists, with the same person responsible for the same task every time
• Keep sand and water on hand and build in buffer time to avoid delivery downtime
• Plan ahead for frac hits, low supplies, and other delays with responsibilities assigned to specific crew members
• Standardize well designs across stages as much as possible

READ MORE: Oriented perforating strategies and frac plug performance

Zipper frac performance measurement

If you can’t measure it, you can’t improve it. Zippering feels fast, but the numbers tell you if it’s really paying off. Here are the KPIs that matter on location, with a few generalized ranges:

• Stages per day: Ideally 10–20+, depending on stage size and design
• Pumping hours per day: 20+, once crews get the hang of zippering
• Spread efficiency: 70–80% is solid (over 80% takes great logistics and clean rock)
• Swap time: Aim for <10 minutes between stages/wells
• Cost per lateral foot: Varies but should trend down over time
• Non-productive time: Varies but should trend down
• Cycle time: Varies but should trend down

If you’re behind on a metric, debrief with the team regularly and log the cause (e.g., wireline not ready, sand low, pressure test). That’s your fix-it list for the next shift. You can also use a team dashboard showing each of these metrics. Keep it up-to-date so everyone on site knows how the day’s performance is trending and where they should improve.

And remember, the recommendations here won’t apply to every well. Your specific operation might be more simple or complex, so your ideal metrics will look different.

FAQ

What’s the difference between a simul frac vs zipper frac?

A zipper frac alternates between wells, with only one being pumped at a time (A, then B, then back to A). A simul frac pumps into two or more wells at the same time. Simul frac is even more efficient than zipper frac, but it needs more horsepower, tighter logistics, and larger pads.

Do zipper fracs increase frac hits?

They can if you're working with tight well spacing or in areas where the pressure from one frac is known to "talk" to an adjacent well. It's a known challenge, but one that can be handled with pressure monitoring and real-time adjustments.

How many wells do you need for a zipper?

You can run a zipper frac with two wells on a pad, alternating back and forth between them. But the real benefits of zippering are more obvious with three or more wells. A longer continuous loop (Well A → Well B → Well C → Well A) gives the wireline crew more time to get ahead and reduces any gaps in pumping.

Does zippering always reduce cost per foot?

While zippering often leads to lower costs per lateral foot, it's not a guaranteed outcome every time. The cost savings really depend on how well you execute the operation. Avoid delays that can eat into your savings, like sand or water shortages, equipment breakdowns, or frac hits.

Save time with zipper fracs
